آون صنعتی -T-960

تماس بگیرید

دستگاه آون

این دستگاه با توجه به zoneهای متفاوتی که دارد و قابل تنظیم میباشد وبا توجه به نوع خمیر قلع مصرفی در برد ها قابلیت لحیم کاری یا قلع کاری به صورت یکپارچه روی برد دارد

کارکرد آن به این صورت است که ابتدا پیش گرمایش اتفاق می افتد و سپس با توجه به فرایند دمای ذوب خمیر قلع دما به نقطه ذوب میرسد و سپس خنک کاری انجام میشود و در نهایت

خروجی کار ، بردها لحیم شده و قلع ها براق خواهدبود  .

oven-آون صنعتی -آلبورگ

oven-آون صنعتی -آلبورگ

oven-آون صنعتی -آلبورگ

توضیحات

آلبورگ - oven

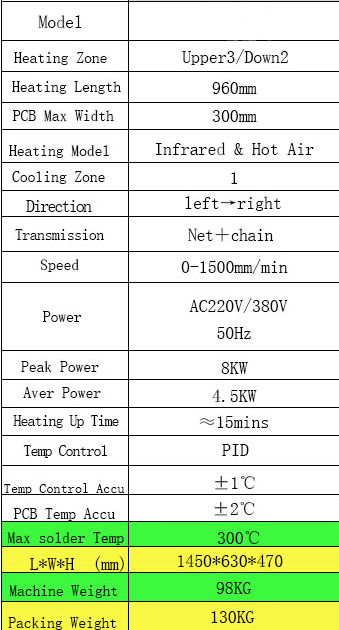

Product features:

 T-960 is equipped with sirocco smart level custom technology and infrared fast heating technology,

combined with a specially designed cooling fan,

thereby creating an exceptionally stable temperature

suitable for the uninterrupted welding of LED and BGA materials in mass production lines.

 The machine is equipped with a crawler heating system combined with 5 separate

temperature zones, each temperature zone is equipped with a separate PID

control system and up and down heating technology.

Thereby making the internal temperature more accurate, shortening the machining time,

it only takes 15 minutes for the temperature in the oven to warm up from room temperature.



3. Equipped with smart wave heating technology,

users can choose from 8 different temperature

waves that are set by default in the machine, to meet their needs.



T-960

 T-960is equipped with a custom feature,

the user can program and store the heat wave set to suit you so that

the machine can automatically run the welding process according to the heat wave you  programmed in advance.

. Adopt thermocouple measurement and add compensation circuit, thereby displaying temperature accurately.

T-960

 Using PID intelligent temperature control technology; make the temperature control more precise.

The output of the machine is designed to minimize damage to the IC or circuit board due to rapid heating, thereby making the soldering process safer.

T-960

. The transmission system uses a frequency conversion motor, combined with a PID closed-loop speed and 1:150 turbine reducer, to help operate the machine more smoothly, with limited interruptions, and the transmission speed is approx. 0 – 1600mm/min.

Adopt independent wheel structure and special stainless steel strut, increase durability, accuracy. Speed ​​can reach ±10mm/min.

Equipped with independent cooling zone, to ensure the PCB board at low temperature when needed.

User-friendly operation interface, perfectly designed LCD screen, no need to connect to PC, viewers can observe the whole repair process clearly

 Ergonomic design, practical and easy to operate. Good build quality but at the same time light weight and suitable dimensions allow the T-960 to be transported or stored.





آلبورگ- آون -oven
